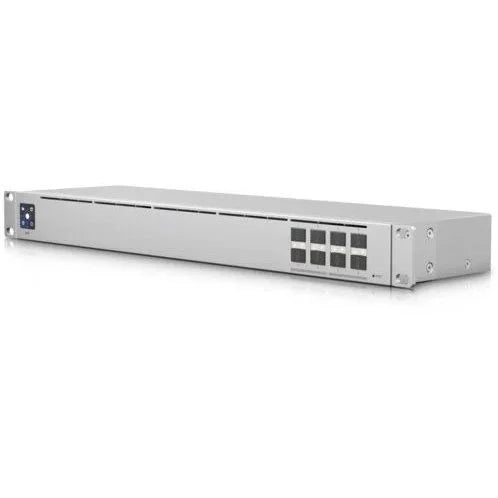

The Ubiquiti Switch USW Aggregation is designed for high-performance network environments, offering robust aggregation capabilities to streamline data flow. Engineered to optimize bandwidth and reduce latency, this switch supports seamless integration with existing Ubiquiti networks, enhancing overall system efficiency. Ideal for expert users managing complex infrastructures, it ensures reliable connectivity and scalable network expansion.
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight |
Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface |
(28) 1/10G SFP+ ports (4) 1/10/25G SFP28 ports* *Does not support mixed speed at 25 Gbps mode. |
| Total Non-blocking Throughput | 380 Gbps |
| Switching Capacity | 760 Gbps |
| Forwarding Rate | 565.44 Mpps |
| Power Method |
(1) Universal input, 100—240V AC, 2A Max., 50/60 Hz (1) USP RPS DC input, 11.5V DC, 8.7A |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100—240V AC |
