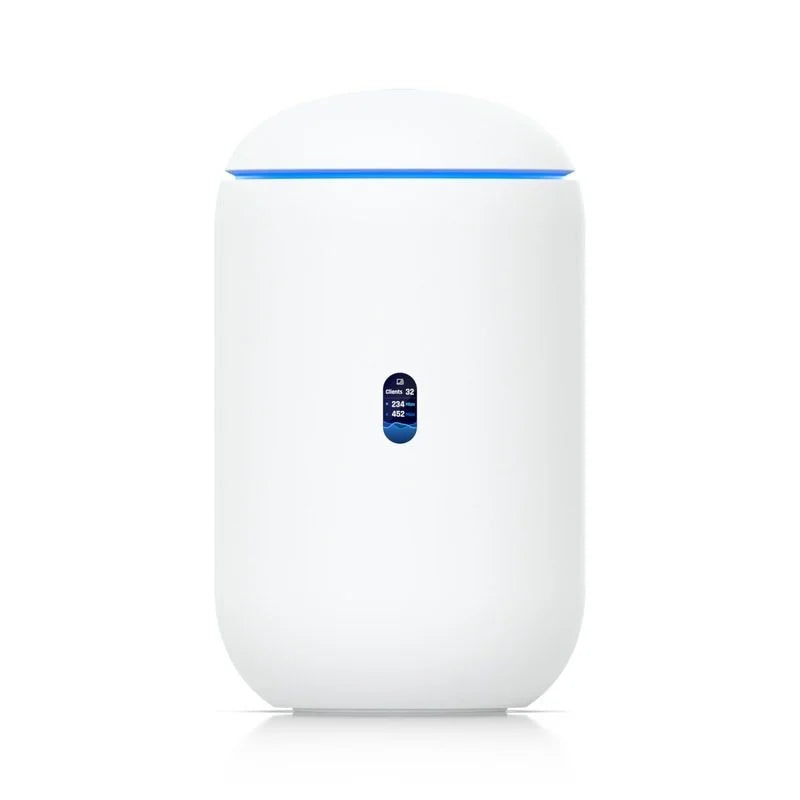

Ubiquiti UDR7

The Ubiquiti UDR7 is a high-performance router designed for advanced networking environments. It integrates robust routing capabilities with seamless management features, delivering reliable and efficient network performance. Ideal for professionals seeking scalable and secure connectivity, the UDR7 supports advanced protocols and offers comprehensive control to optimize network traffic and enhance overall infrastructure stability.

UniFi Dream Router 7
10Gb/s UniFi Dream Router 7 with integrated WiFi 7, PoE switch, microSD storage and full UniFi app support

Features

• router and 5-port switch (2× 2.5GbE RJ-45 LAN 1× 2.5GbE RJ-45 LAN with PoE support, 1× 2.5GbE RJ-45 WAN, 1× 10G SFP+
• integrated access point with support for the 802.11be standard (Wi-Fi 7)
• security gateway - advanced security features (IDS/IPS, DPI and other functions)
• support for all UniFi applications for managing UniFi devices (UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)
• 300+ connected Wi-Fi devices
• microSD slot for NVR storage (64GB microSD card included)
• 0.96" display

Technical parameters
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory: 3GB
Storage:

• pre-installed 64GB microSD for NVR

Management interface:

• Ethernet
• Bluetooth

Network interface
LAN: 3× 2.5GbE RJ45 including 1× PoE
WAN:

• 1× 2.5GbE RJ45
• 1× 10G SFP+

IDS/IPS throughput: 2.3 Gbps
Throughput: 688 Mbps (2.4 GHz) + 4.3 Gbps (5 GHz) + 5.7 Gbps (6 GHz)
Antenna: 2×2 MU-MIMO, integrated antenna 5 dBi (2.4 GHz) + 7 dBi (5 GHz) + 6 dBi (6 GHz)
Power supply: universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power supply: AC/DC, internal, 50W
PoE voltage range: 44-57V
Max. PoE power per port: 15.4 W
Operating temperature: -10 to 40°C
Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Coverage: 160 m2

Dimensions: 110×184.1mm
Weight: 1.1kg

Package contents:

• Dream Router 7
• power cable
• microSD card
• microSD card reader
