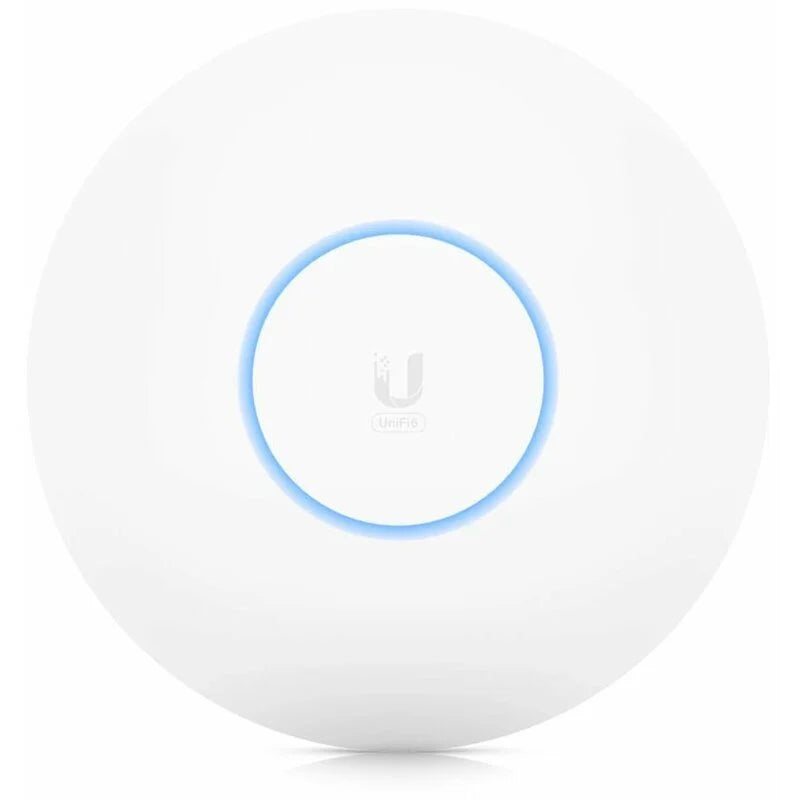

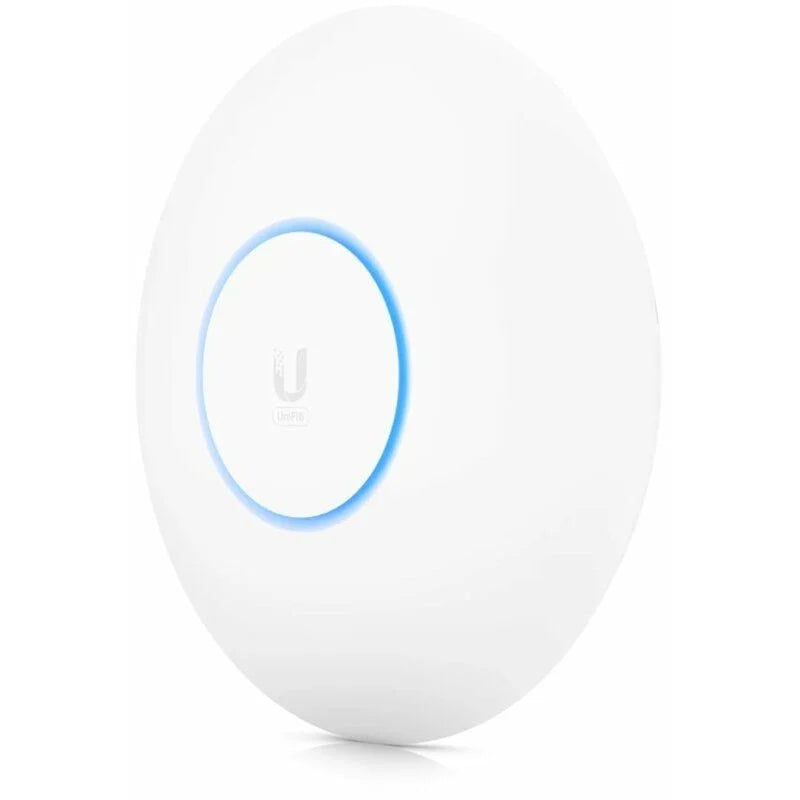

The Ubiquiti UniFi U6-LR is a high-performance long-range Wi-Fi 6 access point designed for demanding network environments. It delivers enhanced throughput and capacity with dual-band 4x4 MU-MIMO technology, ensuring reliable connectivity over extended distances. Ideal for enterprise and large-scale deployments, the U6-LR supports seamless roaming and advanced security features, providing robust wireless coverage and superior network efficiency. Its sleek design and PoE support simplify installation and integration into existing UniFi ecosystems.
Technical parameters
Wireless frequency: 2.4 + 5GHz (dual band)
WiFi standards: 802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO: Yes
Transmission speed - 2.4GHz [Mbps]: 600
Transmission speed - 5GHz [Mb/s]: 2400
2.4GHz Transmit Power [dBm]: 26
5GHz Transmit Power [dBm]: 26
Encryption: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Antenna type: Built-in
Number of built-in antennas: 8
Roaming: Yes
Antenna gain [dBi]: 4, 5.5

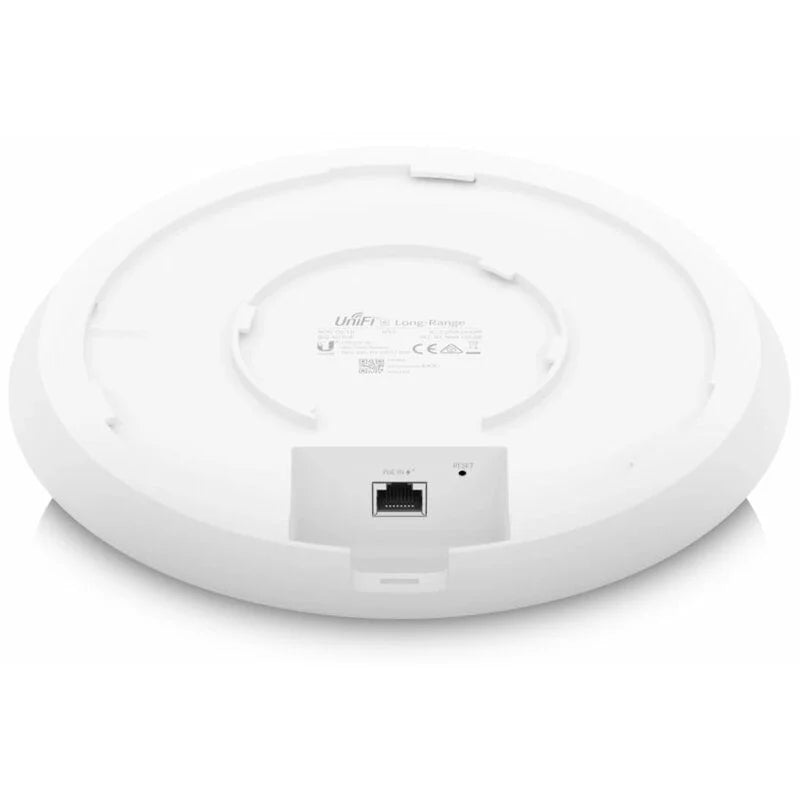

LAN speed: (1) 10/100/1000 Mbps
Gigabit LAN: Yes
Power supply method PoE+, passive PoE (48V)
Power supply via PoE: 802.3at, passive PoE 44 .. 57V DC, 0.5 A
PoE types: PoE-In (only)
Max. power consumption [W]: 18.5
Degree of protection: IP54
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -30 to 60
Weight [g]: 800
Height [mm]: 48
Depth [mm]: 220
Width [mm]: 220
Operating mode: Access Point
IPv6 support: Transparent (bridge mode)
Default IP address: Dynamic from DHCP
