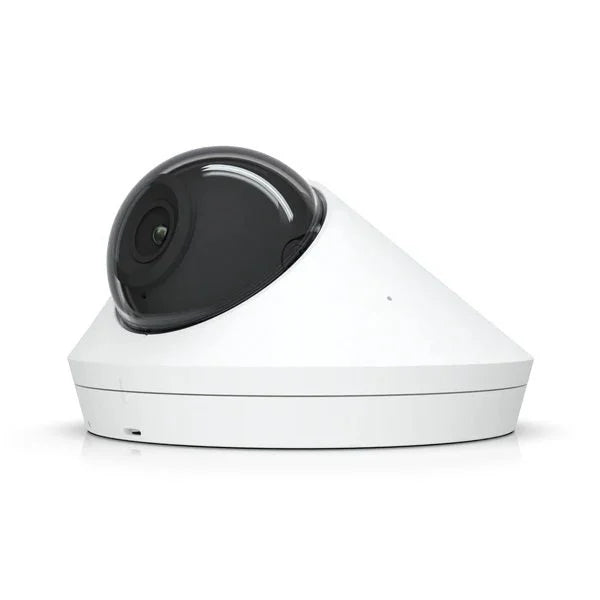

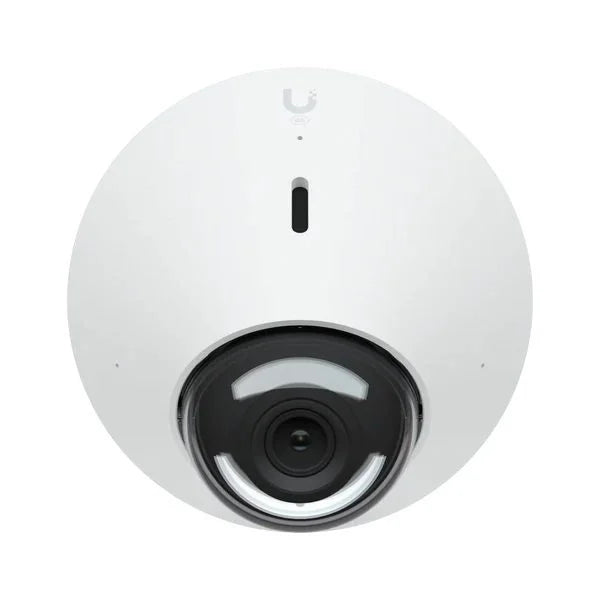

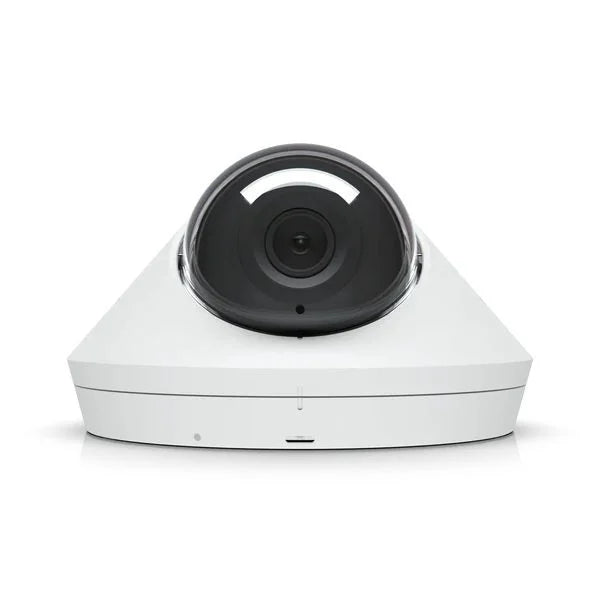

Ubiquiti UVC-G5-Dome

The Ubiquiti UVC-G5-Dome is a high-performance security camera designed for professional surveillance applications. Featuring a 5MP sensor and advanced image processing, it delivers clear, detailed video footage in various lighting conditions. Its dome form factor offers discreet installation and robust protection against tampering. Equipped with PoE support and seamless integration into Ubiquiti’s UniFi ecosystem, this camera ensures reliable connectivity and centralized management for scalable security solutions. Ideal for both indoor and outdoor environments, the UVC-G5-Dome combines durability with cutting-edge technology to meet demanding monitoring needs.

Ubiquiti G5 Dome Camera
next-generation 2K HD PoE ceiling camera with improved dynamic range and low-light performance

• 2K HD, 30FPS camera with 5MP CMOS sensor
• wide angle view (102.4°)
• IPX4 weatherproof enclosure with IK08 vandal resistance
• improved low-light performance and IR night vision up to 10m
• improved dynamic range

Lens type: fixed
Image sensor: 5MP CMOS
Lens: fixed focal length (2.8mm)
Lens mount: yes
Viewing angles: horizontal: 102.4°, vertical: 71.4°, diagonal: 134.3°
Video compression: H.264, MJPEG
Maximum frame rate/resolution: 30fps/2688x1512
Aspect ratio: 16:9
Degree of protection: IPX4
Vandal resistance (impact protection): IK08
Network interface: 1x RJ45 10/100MbE
Audio input: built-in microphone (can be disabled)
Processor: dual-core chip based on Arm® Cortex®-A7
Power supply: PoE
Max. power consumption: 5W
Dimensions: 109.2x109.2x64.5mm
Mass:

• without holder: 370g
• with holder: 390g

Package contents:

• camera
• screws and dowels
• bracket for attaching to the ceiling/wall
